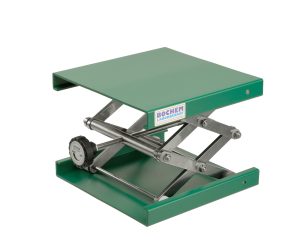

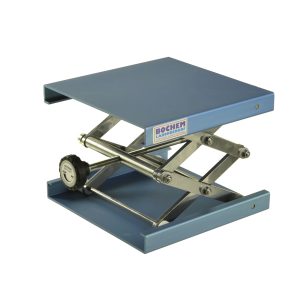

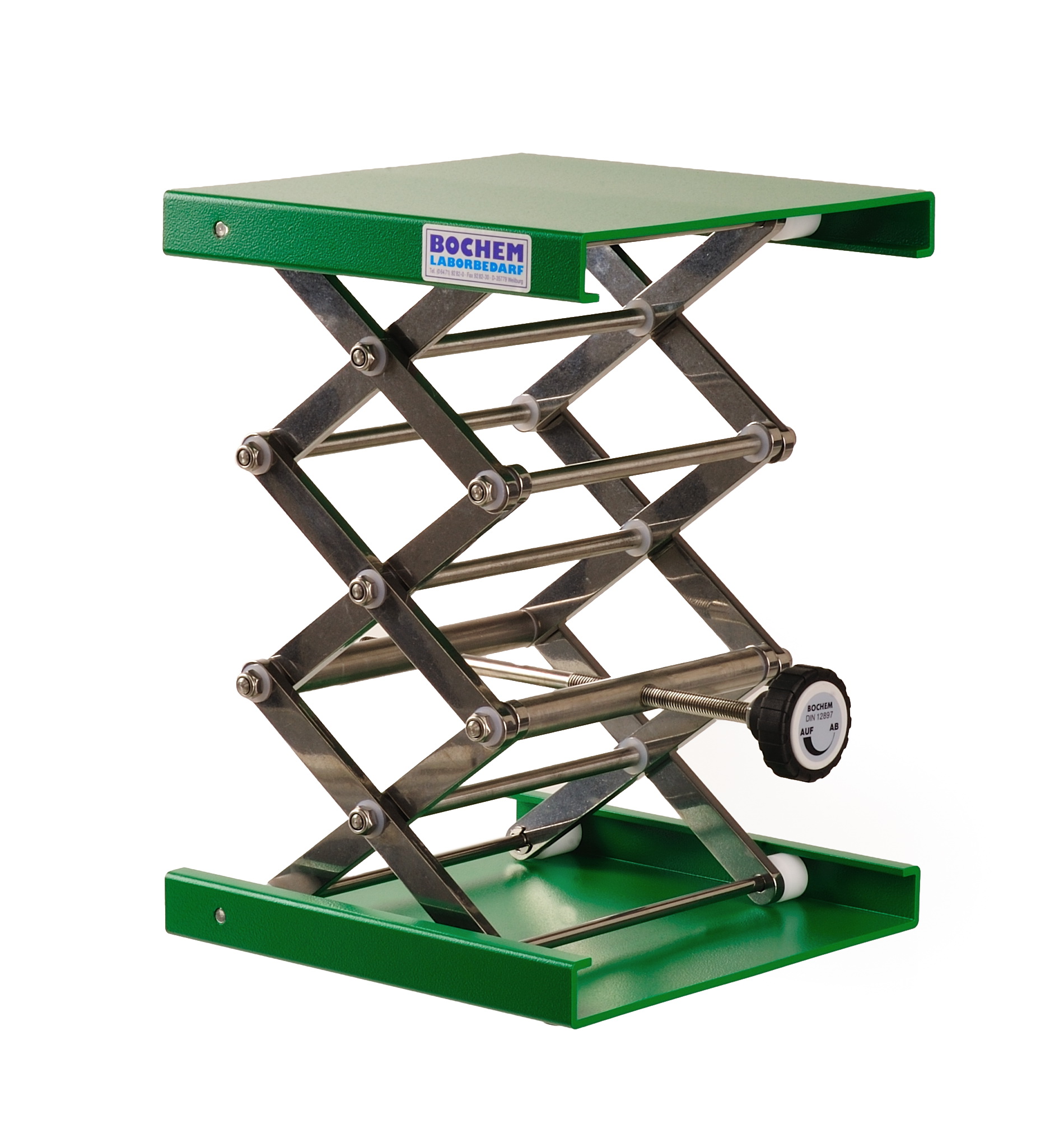

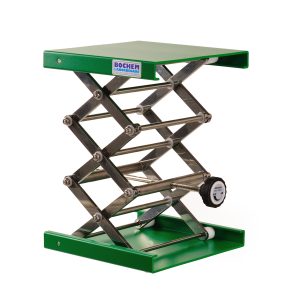

Lab-Jacks, aluminium
New design and improved construction:
– Improved scissor technology with reduced tolerances
– Ergonomic knob, rounded and user friendly
– Scissor-construction made of 18/10-stainless steel
Properties:
– All models are manufactured according to DIN 12897.
– With the operating load we differ between the maximal dynamic operating load (Kg max. dyn.) and the maximal static operating load (Kg max. stat.) of the lab jack. These norms are also according to DIN 12897.
– Smaller models up to 240x240mm (Typ 1) have a simple adjusting wheel, which can be operated by hand.
– With the bigger models from 300x300mm on (Typ 2) we recommend the use of a ratchet, which connects with a special adjusting wheel. This ratchet has to be ordered separately (article nr. 11088)
| Material | A (Length) | B (Width) | C min | C max | Kg max dyn | Kg max stat | Type | Article no. |
|---|---|---|---|---|---|---|---|---|
| Al green | 100 | 100 | 55 | 120 | 5 | 10 | 1 | 11015 |
| Al green | 160 | 130 | 60 | 275 | 7 | 30 | 1 | 11020 |
| Al green | 200 | 200 | 60 | 275 | 7 | 30 | 1 | 11030 |
| Al green | 240 | 240 | 60 | 275 | 7 | 30 | 1 | 11040 |
| Al green | 300 | 300 | 90 | 470 | 12 | 60 | 2 | 11080 |
| Al green | 400 | 400 | 90 | 470 | 15 | 60 | 2 | 11090 |
| Ratchet | 190 | 11088 |
