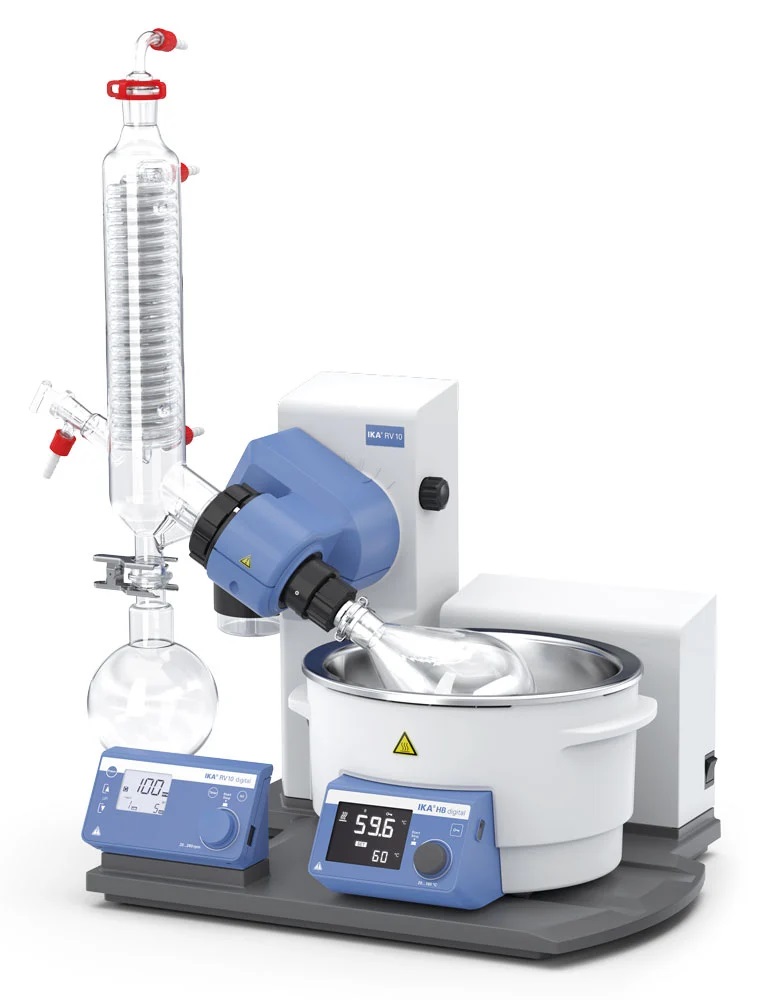

RV 10 digital

Type of cooling                                        vertical
Cooling surface                                       1200 cm2
Motor principle                                         DC
Speed range                                             20 – 280 rpm
Reversible direction of rotation                 yes
Lift                                                              Motor
Stroke                                                         140 mm
Heating temperature range room temp.   – 180 °C
Heat output                                                 1300 W
Heat control accuracy                                 1 ±K
Bath volume max.                                        3 l
Vacuum controller integrated                        no
Timer                                                             yes
Dimensions (W x H x D)                                500 x 430 x 410 mm
Weight                                                           20 kg
Permissible ambient temperature                 5 – 40 °C
Permissible relative moisture                     80 %
Protection class according to DIN                  EN 60529 IP 20
RS 232 interface                                              yes
Voltage                                                             220 – 240 / 100 – 240 / 100 – 120 / 100 – 115 V
Frequency                                                       50/60 Hz
Power input                                                    1400 W

Catalogue RV 10 Digital _ PDF
