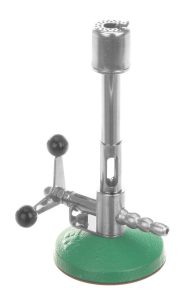

TECLU burner with needle valve (DIN 30665)
– Air regulation
– Pilot flame
-Max. 1300°C
Material | D/Ø | C (Height) | KW | Type | mbar | g/h | Article no. |
---|---|---|---|---|---|---|---|
Ms-Ni | 76 | 180 | 1,53 | Erdgas | 23 | 120 | 7400 |
Ms-Ni | 76 | 180 | 2,36 | Propan | 60 | 180 | 7410 |

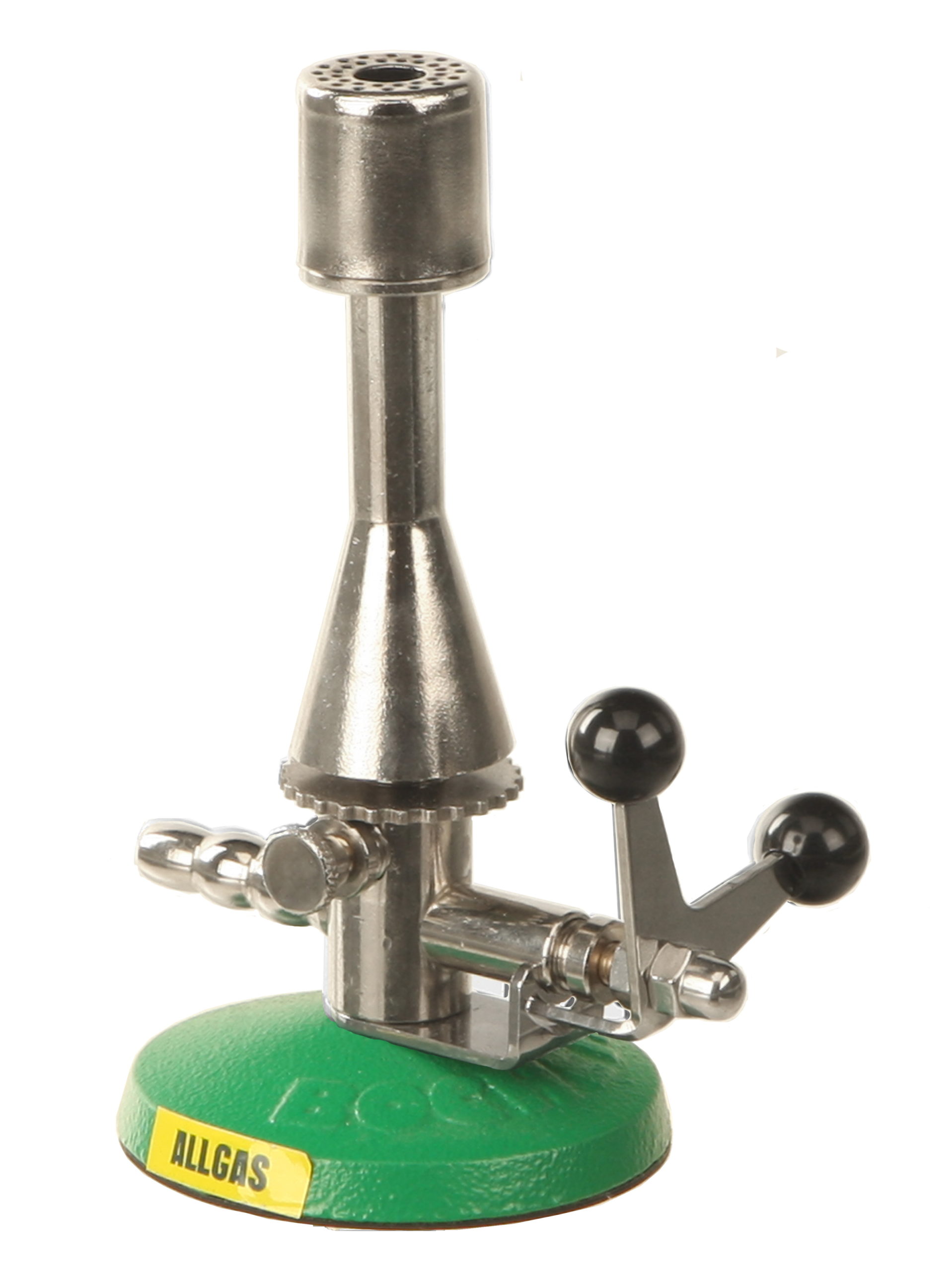

Multi gas burner TECLU with stopcock
– Air regulation
– Max. 1300°C
Material | D/Ø | C (Height) | KW | Type | mbar | Article no. |
---|---|---|---|---|---|---|
Ms-Ni | 78 | 160 | 0,5-3 | Multi Gas | 5-100 | 7430 |

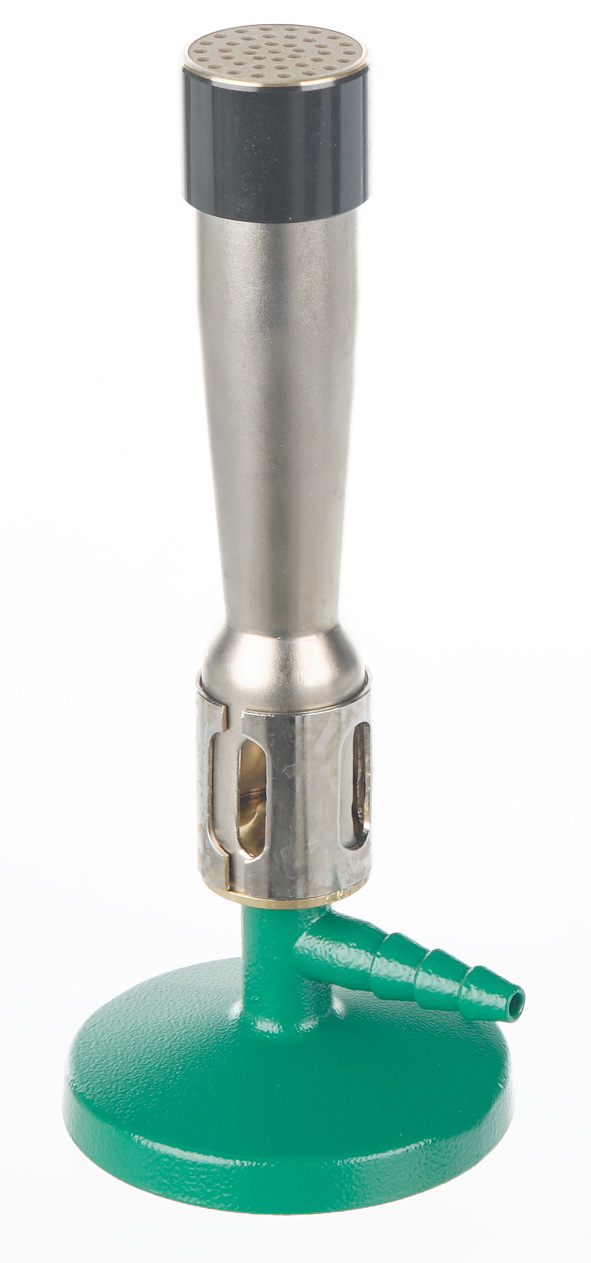

Meker-Fisher burner
– Air regulation
– Gas regulation with swivel screw
– Burner head D=30mm
– Max. 1300°C
Material | D/Ø | C (Height) | KW | Type | mbar | Article no. |
---|---|---|---|---|---|---|
Ms-Ni | 80 | 200 | 0,5-3 | Multi Gas | 5-100 | 7520 |

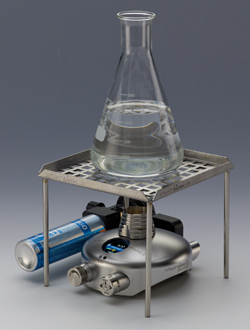

schuett phoenix II
Safety Bunsen Burner
Dimensions (WxDxH): 125x160x85
Power: 100-240 V, 50/60 Hz
Weight approx. 1000 g
3 models available:
schuett phoenix II eco
(without display/sensor, with foot-switch)
Start/stop flame by foot-switch or press button by hand (ON/OFF).
Low-cost model, best suited for microbiological safety cabinets.
schuett phoenix II standard
(colour display, language selection, sensor and foot- switch)
Start/Stop flame by activating sensor 1x/2x, use foot switch or press button by hand (ON/OFF). Burn-time displayed.
schuett phoenix II accu
(colour display, language selection, sensor and built-in high-power battery)
Start/stop flame by activating sensor 1x/2x, use foot-switch or press button by hand (ON/OFF). Burn-time and battery status displayed. Built-in high-power battery for up to 30 hours operating time. With high-speed battery charger incl. overcharge protection. Ideal for mobile operation
.
